Indexable End Mills

WJX09_SCREW-IN_INCH
（Double-sided Insert Type High Feed Radius Milling Cutter）

WJX09UR1802AM1235 EDP:10618578

METRIC Products
Shape Series Geometry Tooling Sheet Cutter Body Type Feature Structure
WJX09 Square (With Center Hole)
  • Standard
  • Double sided Z Geometry.
  • Smooth chip discharge.
 Indexable
WJX09_SCREW-IN Square (With Center Hole)
  • Screw in
  • Double sided Z Geometry.
  • Smooth chip discharge.
 Indexable

Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

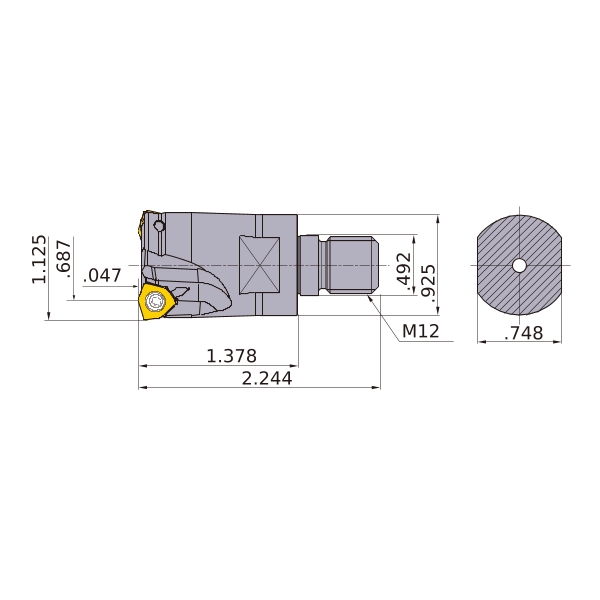

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
AZ .047
DC .687
DCX 1.125
DCON .492
DCSFMS .925
RMPX 5.3
LF 1.378
OAL 2.244
S10 .748
APMX .047
GAMP -7
GAMF -11
WT 0.3
CRKS M12
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
RPMX 29800
2D Model (DXF)
CAD data name Download
WJX09UR1802AM1235
