End Mills >VPX200_LONG_INCH >VPX200UR162FA16S0806
VPX200_LONG_INCH
(Multi-functional Cutter for High Efficiency Machining)
Shape | Series | Geometry | Tooling Sheet | Cutter Body Type | Feature | Structure |
---|---|---|---|---|---|---|
![]() |
VPX200 | Square (With Center Hole) |
|
|
Indexable | |
![]() |
VPX200_LONG | Square (With Center Hole Long Cut Length) |
|
|
Indexable | |
![]() |
VPX200_SCREW-IN | Square (With Center Hole) |
|
|
Indexable | |
![]() |
VPX200_SHELL_MM | Square (With Center Hole Long Cut Length) |
|
|
Indexable |

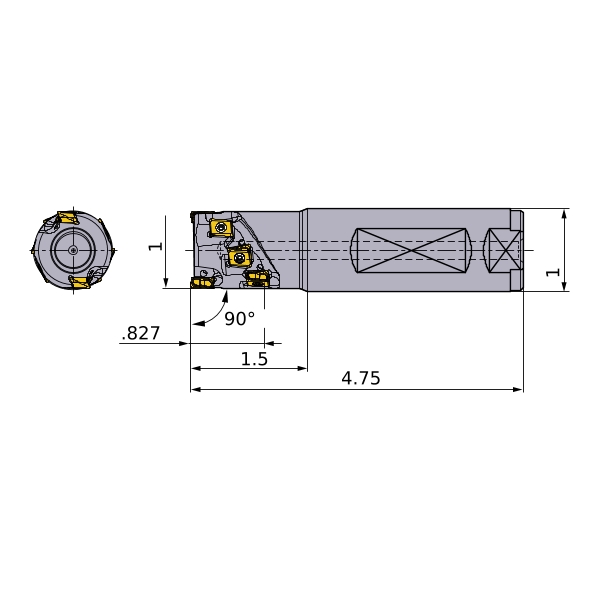

The actual product may differ from the displayed image.
For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Sales unit | 1 |
Hand | R |
Stock | ![]() |
Unit of Length | I |
DC | 1 |
DCON | 1 |
KAPR | 90° |
RMPX | 0.95° |
LF | 4.75 |
LH | 1.5 |
APMX | .827 |
GAMP | -8° |
GAMF | -31° |
WT | 0.904 |
Cutting item count: CICT | 6 |
Peripheral effective cutting edge count: ZEFP | 2 |
Face effective cutting edge count: ZEFF | 2 |
2D Model (DXF) | |
---|---|
CAD data name | Download |
VPX200UR162FA16S0806
|
![]() |
3D Detail Model (STP,STL) | |
---|---|
CAD data name | Download |
VPX200UR162FA16S0806
|
![]() |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
