End Mills >VPX200_LONG_INCH >VPX200UR244FA20S1320
VPX200_LONG_INCH
(Multi-functional Cutter for High Efficiency Machining)
Shape | Series | Geometry | Tooling Sheet | Cutter Body Type | Feature | Structure |
---|---|---|---|---|---|---|
![]() |
VPX200 | Square (With Center Hole) |
|
|
Indexable | |
![]() |
VPX200_LONG | Square (With Center Hole Long Cut Length) |
|
|
Indexable | |
![]() |
VPX200_SCREW-IN | Square (With Center Hole) |
|
|
Indexable | |
![]() |
VPX200_SHELL_MM | Square (With Center Hole Long Cut Length) |
|
|
Indexable |

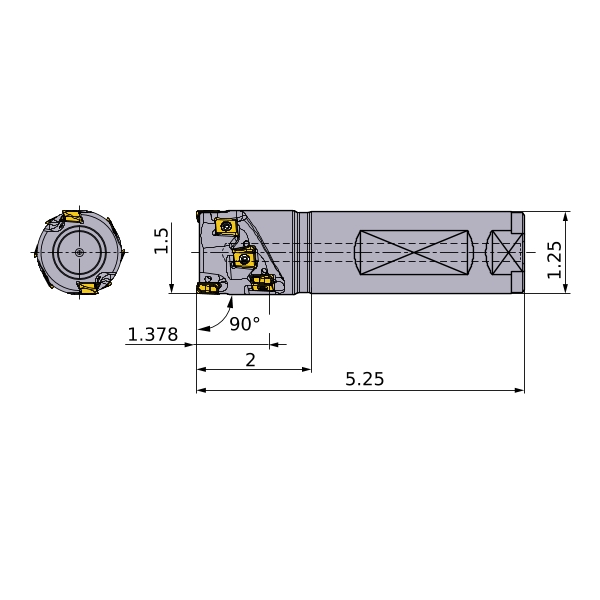

The actual product may differ from the displayed image.
For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Sales unit | 1 |
Hand | R |
Stock | ![]() |
Unit of Length | I |
DC | 1.5 |
DCON | 1.25 |
KAPR | 90° |
RMPX | 0.57° |
LF | 5.25 |
LH | 2 |
APMX | 1.378 |
GAMP | -8° |
GAMF | -31° |
WT | 1.676 |
Cutting item count: CICT | 20 |
Peripheral effective cutting edge count: ZEFP | 4 |
Face effective cutting edge count: ZEFF | 4 |
2D Model (DXF) | |
---|---|
CAD data name | Download |
VPX200UR244FA20S1320
|
![]() |
3D Detail Model (STP,STL) | |
---|---|
CAD data name | Download |
VPX200UR244FA20S1320
|
![]() |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
