External Cutting

SVPD_INCH


SVPDL-123 EDP:106558

Product Information

  • Shank size .625 square thru 1.000 square with screw-on method.
  • Suitable for finishing aluminum or non-ferrous metals and for chatter control on small diameters.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI SVPDL123B
Sales unit 1
Hand L
Stock
Unit of Length I
B .75

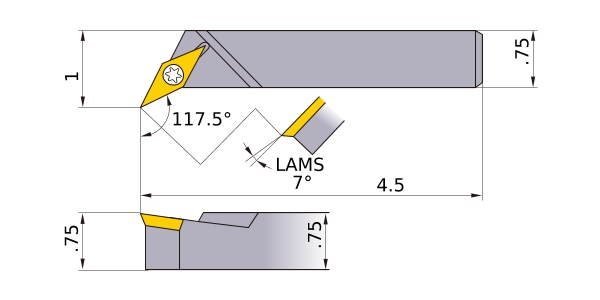

KAPR 117.5°
LF 4.5
WF 1
H .75
HF .75
Peripheral effective cutting edge count: ZEFP 1
Insert Number VD__32
