External Cutting >SVVBN-122

External Cutting

SVVBN-122 EDP:405294

Product Information

The actual product may differ from the displayed image.

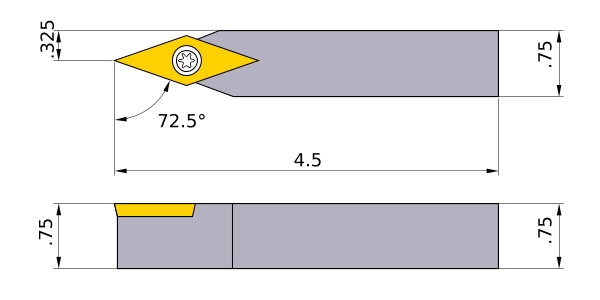

For details, please check the dimensions below.

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI SVVBN122B
Sales unit 1
Hand N
Stock
Unit of Length I
B .75
KAPR 72.5°
LF 4.5
WF .325
H .75
HF .75
Peripheral effective cutting edge count: ZEFP 1
Insert Number VB__22
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Turning Insert

  • Spare Parts
