Face Cutter >AJX_INCH >AJX14RA12507E

Face Cutter

AJX14_INCH
（MULTI FUNCTIONAL MILLING）

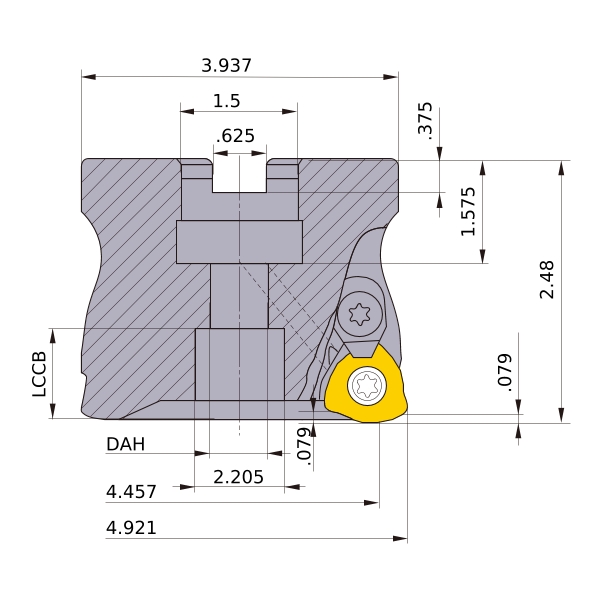

AJX14RA12507E EDP:417981

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
AJX
  • Suitable for high feed cutting.
  • Standardization of coolant holes.
  • Special insert design with the use of 3 cutting edges.
  • High rigidity due to double clamp structure.

AJX_MM
  • High rigidity due to double clamp structure.
  • Suitable for high feed cutting.
  • Special insert design with the use of 3 cutting edges.
  • Standardization of coolant holes.


Product Information

  • Special insert design with the use of 3 cutting edges.
  • High rigidity due to double clamp structure.
  • Suitable for high feed cutting.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
AZ .079
DC 4.457
DCX 4.921
DCON 1.5
DCSFMS 3.937
DCCB 2.205
RMPX 0.8
L8 .375
LF 2.48
CBDP 1.575
KWW .625
APMX .079
GAMP +8°
GAMF -5°
Peripheral effective cutting edge count: ZEFP 7
2D Model (DXF)
CAD data name Download
AJX14RA12507E
