Face Cutter

ASX445_INCH
(GENERAL CUTTING)

ASX445R1010M EDP:175450

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
ASX445
  • High rigidity due to employment of a carbide shim.
  • Screw-on type.
  • A wide range of chip breakers.
  • Precise but inexpensive molded type 20° positive insert.
ASX445_MM
  • Precise but inexpensive molded type 20° positive insert.
  • Screw-on type.
  • A wide range of chip breakers.
  • High rigidity due to employment of a carbide shim.

Product Information

  • A wide range of chip breakers.
  • Screw-on type.

The actual product may differ from the displayed image.

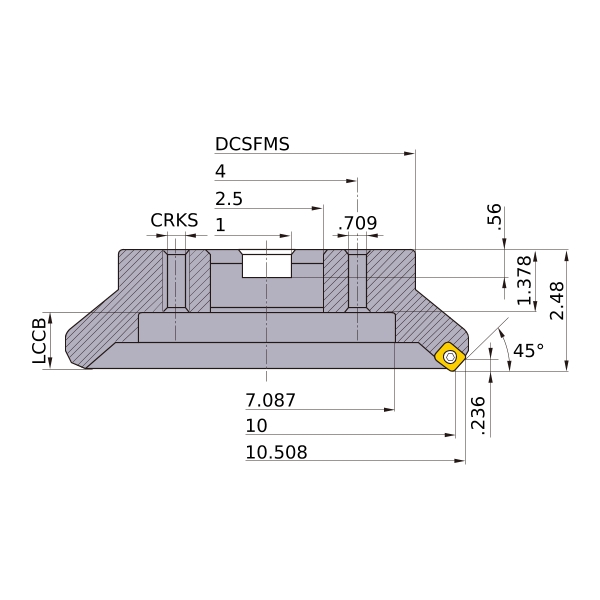

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

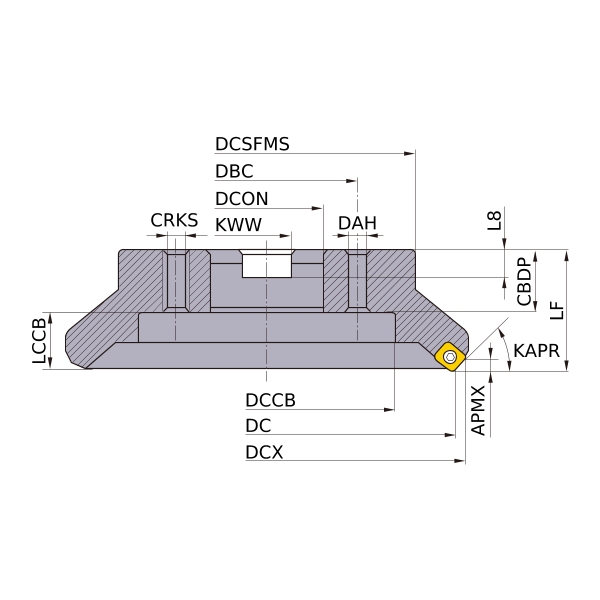

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
DC 10
DCX 10.508
DCON 2.5
DAH .709
DCCB 7.087
KAPR 45°
L8 .56
LF 2.48
CBDP 1.378
KWW 1
APMX .236
GAMP +23°
GAMF -10°
WT 23.7
DBC 4
Peripheral effective cutting edge count: ZEFP 10
RPMX 8000
2D Model (DXF)
CAD data name Download
ASX445R1010M
CAD

3D Detail Model (STP,STL)
CAD data name Download
ASX445R1010M
CAD

3D Light Model (STP,STL)
CAD data name RE Download
ASX445R1010M_IR0_059
.059 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
