Face Cutter > BRP_INCH

Face Cutter

BRP_INCH

  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.

  • Round shape insert gives strong cutting edge.
  • Multi functional milling.
  • Suitable for roughing of molds and dies.
  • 11°positive insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

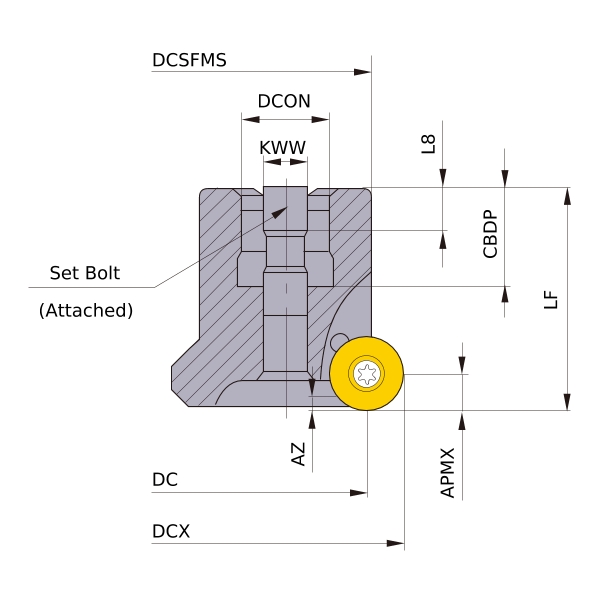

Type1 [Outspread]

Type2 [Outspread]

  1
Order Number Type CAD Type of Coolant Hand Name of Grade Grade Stock
BRP6UPR1503X Type1 CAD R
BRP6UPR0204 Type2 CAD R
BRP7UPR2504 Type2 CAD R
BRP6UPR2505 Type2 CAD R
BRP7UPR0305C Type2 CAD R
BRP6UPR0306C Type2 CAD R
BRP7UPR0406E Type2 CAD R
BRP6UPR0407E Type2 CAD R
Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge D1 IC DMIN CUTDIA DAXX DC DC1 DC2 D2 DCX L1 L L24 FLGT LF OAL LPR D9 DCON L7 CBDP LCCB D8 DAH DAH1 DAH2 DCCB CNT W1 KWW L8 WT ap APMX HTB DCN CDI DCINX BDX CWX LBX D4 D5 DN DCSFMS BD BD1 BD2 BD3 BD4 BD5 B L2 LH L19 LU L3 LBB CDX L20 LDRED L15 LCF L9 HBKW LS H1 H H2 HF HBH F1 WF BS S1 WF2 S4 S Z2 PDY PDX RR GAMF GAMO LAMS ALF FHA KRINS STA R PRFRAD RE RE1 RE2 RE3 ld BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 LTA LBYD KWL Breaker Use body Modular Blade Insert Number DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
3 .996 1.5 2 .75 .748 .313 .187 .24 1.228 -4°
4 1.492 2 2 .75 .748 .613 .415 .6 .313 .187 .24 1.614 1.715 +2°
4 1.866 2.5 2 .75 .748 .652 .415 .6 .313 .187 .302 1.89 2.165 0°
5 1.992 2.5 2 .75 .748 .613 .415 .6 .313 .187 .24 1.89 2.215 0°
5 2.366 3 2 1 .969 .652 .539 .787 .375 .219 .302 2.362 2.649 0°
6 2.492 3 2 1 1.024 .613 .539 .787 .375 .219 .24 2.362 2.706 0°
6 3.366 4 2.5 1.5 1.122 .92 .787 1.181 .625 .375 .302 3.15 3.631 0°
7 3.492 4 2.5 1.5 1.181 .877 .787 1.181 .625 .375 .24 3.15 3.696 0°
  1

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
