Face Cutter

BXD4000_INCH
（ALUMINUM ALLOY FOR DIFFICULT-TO-CUT MATERIAL CUTTING）

BXD4000R0406B EDP:237420

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
BXD4000
  • The Anti Fly Insert mechanism guarantees secure high-revolution milling.
  • Low resistance insert and high rigidity body.
  • Air coolant through.
BXD4000_MM
  • The Anti Fly Insert mechanism guarantees secure high-revolution milling.
  • Low resistance insert and high rigidity body.
  • Air coolant through.

Product Information

  • Low resistance insert and high rigidity body.
  • The Anti Fly Insert mechanism guarantees secure high-revolution milling.
  • Air coolant through.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I

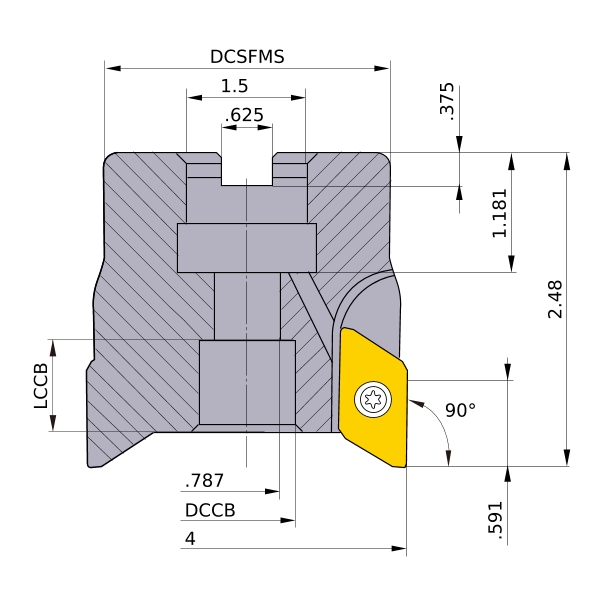

DC 4
DCON 1.5
DAH .787
KAPR 90°
RMPX 3
L8 .375
LF 2.48
CBDP 1.181
KWW .625
APMX .591
GAMP +15°
GAMF +16°
Peripheral effective cutting edge count: ZEFP 6
RPMX 16000
2D Model (DXF)
CAD data name Download
BXD4000R0406B
CAD
