Face Cutter >AHX440S_INCH >AHX440SUR0306CA

Face Cutter

AHX440S_INCH
（GENERAL CUTTING）

AHX440SUR0306CA EDP:10537091

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
AHX440S
  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.
AHX440S_MM
  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

Product Information

  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

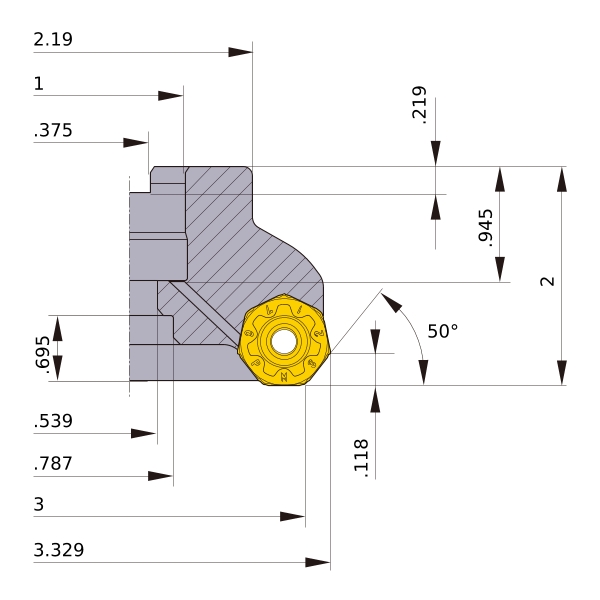

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 3
DCX 3.329
DCON 1
DCSFMS 2.19
DAH .539
DCCB .787
KAPR 50°
L8 .219
LF 2
CBDP .945
LCCB .695
KWW .375
APMX .118
GAMP -6°
GAMF -7°
WT 2.3
Peripheral effective cutting edge count: ZEFP 6
2D Model (DXF)
CAD data name Download
AHX440SUR0306CA
CAD
