Face Cutter >AHX440S_INCH >AHX440SUR1503SA

Face Cutter

AHX440S_INCH
（GENERAL CUTTING）

AHX440SUR1503SA EDP:10537213

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
AHX440S
  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.
AHX440S_MM
  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

Product Information

  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

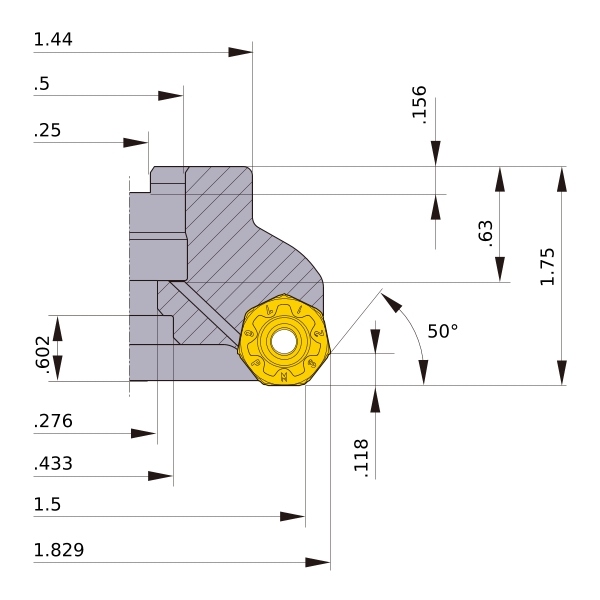

Unit of Length I
DC 1.5
DCX 1.829
DCON .5
DCSFMS 1.44
DAH .276
DCCB .433
KAPR 50°
L8 .156
LF 1.75
CBDP .63
LCCB .602
KWW .25
APMX .118
GAMP -6°
GAMF -8°
WT 0.7
Peripheral effective cutting edge count: ZEFP 3
2D Model (DXF)
CAD data name Download
AHX440SUR1503SA
CAD
