Face Cutter

FMAX_INCH
（HIGH FEED FINISHING）

FMAXUR0314C EDP:10552520

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
FMAX
  • Internal coolant and a special chip breaker wall (Body protector) provides ideal chip discharge performance.
  • Light Weight, High Rigidity Body
  • High precision, Easy setting
FMAX_COMPACT
  • For Compact and Smaller Machining Centers
  • Internal coolant and a special chip breaker wall (Body protector) provides ideal chip discharge performance.
  • Light Weight, High Rigidity Body
  • High precision, Easy setting
FMAX_MM
  • Internal coolant and a special chip breaker wall (Body protector) provides ideal chip discharge performance.
  • Light Weight, High Rigidity Body
  • High precision, Easy setting

Product Information

  • Internal coolant and a special chip breaker wall (Body protector) provides ideal chip discharge performance.
  • Light Weight, High Rigidity Body
  • High precision, Easy setting

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

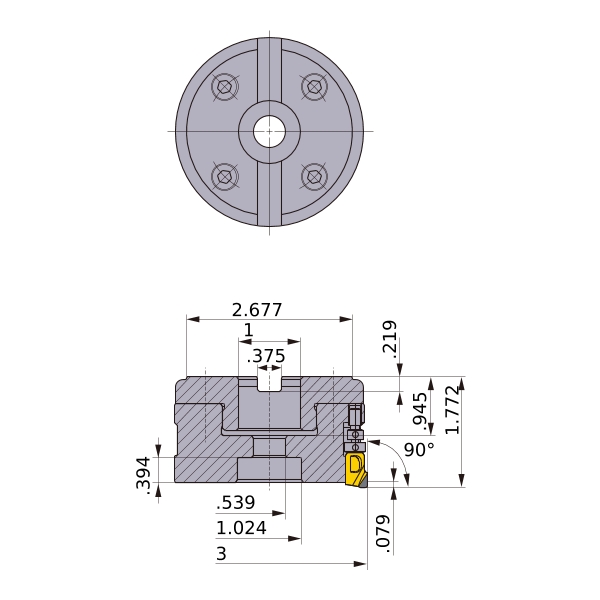

Unit of Length I
DC 3
DCON 1
DCSFMS 2.677
DAH .539
DCCB 1.024
KAPR 90°
L8 .219
LF 1.772
CBDP .945
LCCB .394
KWW .375
APMX .079
GAMP +5°
GAMF 0°
WT 2.1
Peripheral effective cutting edge count: ZEFP 14
RPMX 24500
