Face Cutter >VAS400_FULL_INCH >VAS400UA041005N0.75D

Face Cutter

VAS400_FULL_INCH
（Side Cutter）

VAS400UA041005N0.75D

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

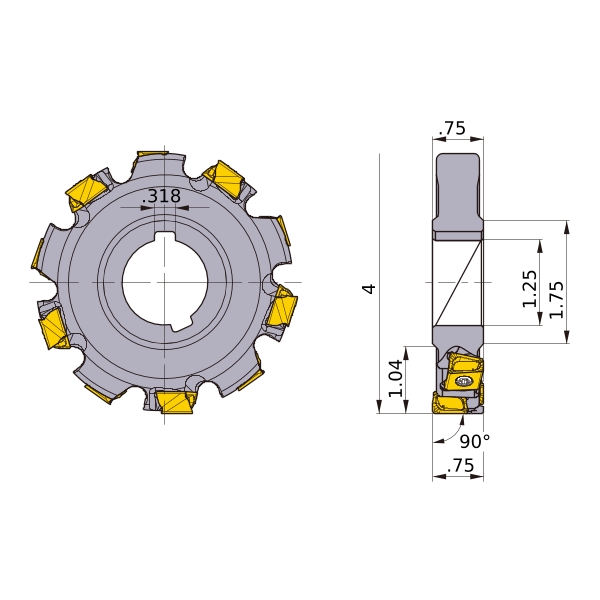

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand N
Stock
Unit of Length I
DC 4
DCON 1.25
DCSFMS 1.75
KAPR 90°
LF .75
OAL .75
CDX 1.04
KWW .318
GAMP +3°
GAMF +8°
Peripheral effective cutting edge count: ZEFP 5

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Insert for Rotating Tools

  • Spare Parts
