Face Cutter >VPX300_INCH >VPX300UR2.5008CA

Face Cutter

VPX300_INCH
（Multi-functional Cutter for High Efficiency Machining）

VPX300UR2.5008CA EDP:10597095

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
VPX300
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.
VPX300_MM
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.

Product Information

  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.

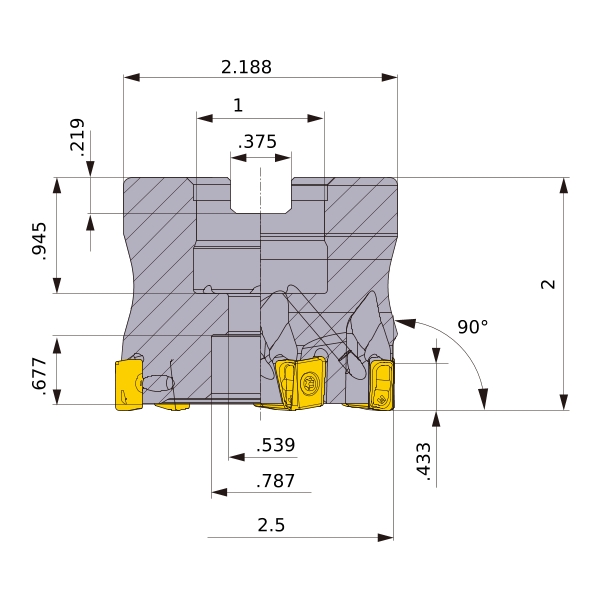

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 2.5
DCON 1
DCSFMS 2.188
DAH .539
DCCB .787
KAPR 90°
RMPX 0.59°
L8 .219
LF 2
CBDP .945
LCCB .677
KWW .375
APMX .433
WT 0.72
Cutting item count: CICT 8
Peripheral effective cutting edge count: ZEFP 8
Face effective cutting edge count: ZEFF 8
Effective Cutting Edge 8
RPMX 13400
