Face Cutter >WWX200_INCH >WWX200UR5.0007EA

Face Cutter

WWX200_INCH
（Double sided Insert Type Shoulder Mill）

ASX445R0610E EDP:22864291

METRIC Products
Shape Series Tooling Sheet Feature Cutting Edge Angle
WWX200
  • Econimical double sided insert with 6 corners.
  • The insert thickness was greatly increased to markedly improve the fracture resistance.
  • High-stability clamping and high-quality machining.
WWX200_MM
  • Econimical double sided insert with 6 corners.
  • The insert thickness was greatly increased to markedly improve the fracture resistance.
  • High-stability clamping and high-quality machining.

Product Information

  • A wide range of chip breakers.
  • Screw-on type.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I

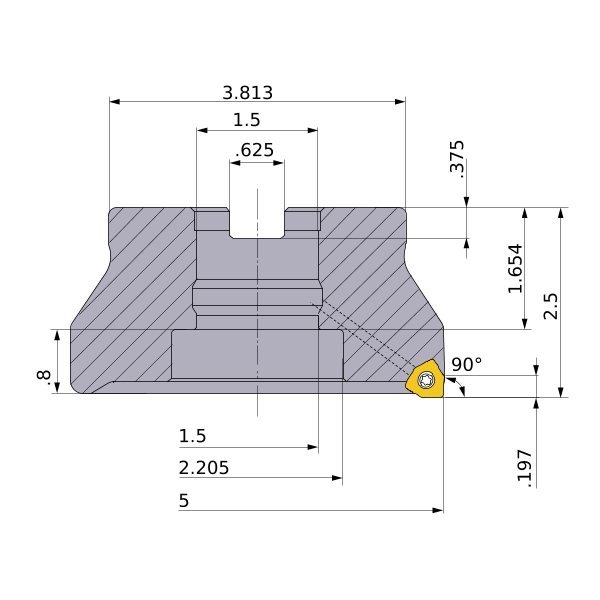

DC 6
DCX 6.511
DCON 1.5
DAH 2.362
DCCB 2.362
KAPR 45°
L8 .375
LF 2.48
CBDP 1.378
KWW .625
APMX .236
GAMP +23°
GAMF -10°
WT 10.1
Peripheral effective cutting edge count: ZEFP 10
RPMX 10000
2D Model (DXF)
CAD data name Download
WWX200UR5_0007EA
CAD
