Grooving Others >CG >CG0407RS-10

Grooving Others

CG
（Micro Mini Twin）

CG0407RS-10 EDP:492674

Product Information

  • Solid carbide type with 2 cutting edges.
  • Continuous turning from internal turning to face turning.
  • Each boring bar comes in two types, with or without breaker.
  • The minimum cutting dameter is from 2.2mm.

The actual product may differ from the displayed image.

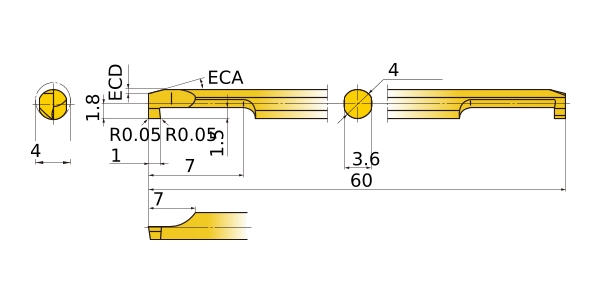

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade TF15
Sales unit 1
Hand R
Stock
Unit of Length M
DMIN 4
DCON 4
LF 60
LU 7
CDX 7
WF 1.8
H 3.6
CW 1
WF2 1.5
REL 0.05
RER 0.05
Peripheral effective cutting edge count: ZEFP 1
Classification of Grades
Coated・Carbide VP15TF
