Grooving GY Series

GYH00A_B_INCH
（00° type holder）

1F1R4F1

Product Information

  • High accuracy, long life inserts for a wide variety of machining applications
  • Highly reliable insert clamping
  • Innovative Tri Lock System
  • Dimensions shown are when the gauge insert is used.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

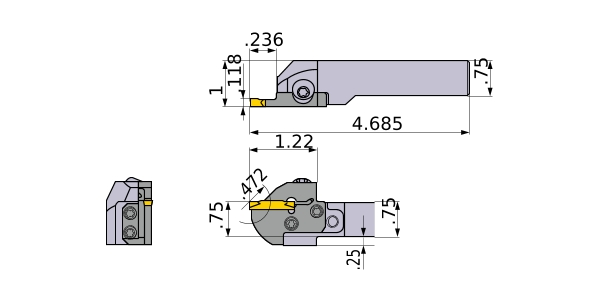

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length I
CUTDIA .472
B .75
L4 2.06
LF 4.685
LH 1.22
CDX .236
WF 1
H .75
HF .75
HBH .25
CW .118
Peripheral effective cutting edge count: ZEFP 1
Modular Holder GYHRUS12C00-M25R
Modular Blade GYM25RA-F06
2D Model (DXF)
CAD data name Download
1F1R4F1
