Grooving GY Series

GYH00A_B_INCH
（00° type holder）

1H1R4E1

Product Information

  • High accuracy, long life inserts for a wide variety of machining applications
  • Highly reliable insert clamping
  • Innovative Tri Lock System
  • Dimensions shown are when the gauge insert is used.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock

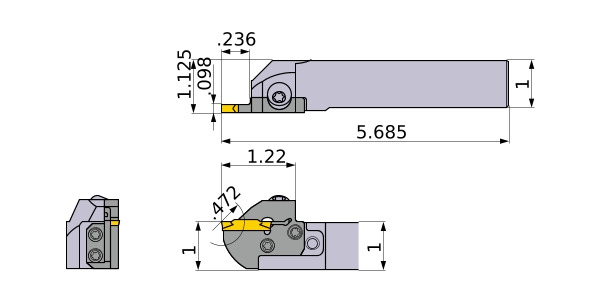

Unit of Length I
CUTDIA .472
B 1
L4 1.934
LF 5.685
LH 1.22
CDX .236
WF 1.125
H 1
HF 1
CW .098
Peripheral effective cutting edge count: ZEFP 1
Modular Holder GYHRUS16D00-M25R
Modular Blade GYM25RA-E06
2D Model (DXF)
CAD data name Download
1H1R4E1
CAD
