Grooving GY Series

GYH90A_B_INCH
（90° type holder）

2F1R3G1

Product Information

  • High accuracy, long life inserts for a wide variety of machining applications
  • Highly reliable insert clamping
  • Innovative Tri Lock System
  • Dimensions shown are when the gauge insert is used.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length I

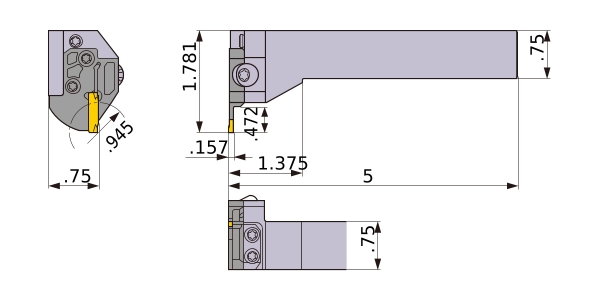

CUTDIA .945
B .75
LF 5
LH 1.375
CDX .472
WF 1.781
H .75
HF .75
CW .157
Peripheral effective cutting edge count: ZEFP 1
Modular Holder GYHRUS12C90-M20L
Modular Blade GYM20LA-G12
2D Model (DXF)
CAD data name Download
2F1R3G1
CAD
