Grooving GY Series

GYH90A_B_INCH
（90° type holder）

2H1R4J1

Product Information

  • High accuracy, long life inserts for a wide variety of machining applications
  • Highly reliable insert clamping
  • Innovative Tri Lock System
  • Dimensions shown are when the gauge insert is used.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length I

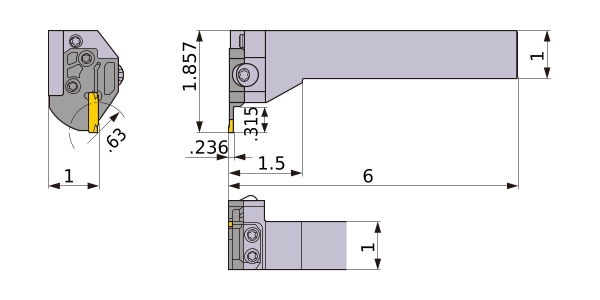

CUTDIA .63
B 1
LF 6
LH 1.5
CDX .315
WF 1.857
H 1
HF 1
CW .236
Peripheral effective cutting edge count: ZEFP 1
Modular Holder GYHRUS16D90-M25L
Modular Blade GYM25LA-J08
2D Model (DXF)
CAD data name Download
2H1R4J1
CAD
