Grooving GY Series >GYQ00_INCH >1H2R9E2
GYQ00_INCH
(00° type holder)
The actual product may differ from the displayed image.

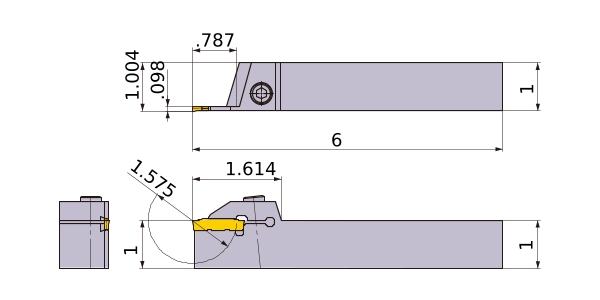

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Hand | R |
Stock | |
Unit of Length | I |
CUTDIA | 1.575 |
B | 1 |
LF | 6 |
LH | 1.614 |
CDX | .787 |
WF | 1.004 |
H | 1 |
HF | 1 |
CW | .098 |
Peripheral effective cutting edge count: ZEFP | 1 |
Modular Holder | GYQRUS16D00-E20 |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
Recommended Cutting Condition
Turning Insert
