Insert for Rotating Tools

APMT1135PDER-M0 EDP:173091

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade F7030
ANSI APMT1135PDER-M0
Sales unit 10
Stock

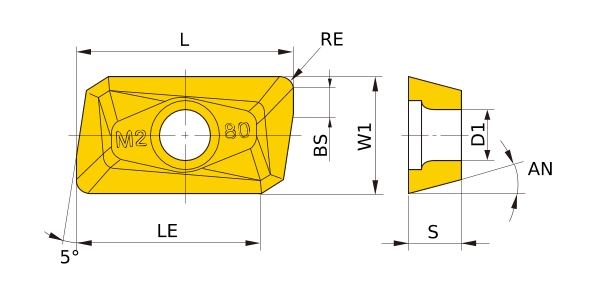

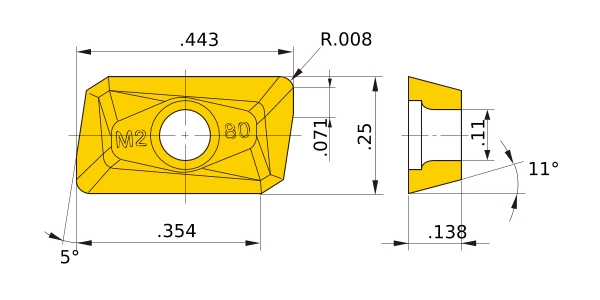

Unit of Length M
D1 2.8
AN 11°
LE 9
L 11.25
W1 6.35
BS 1.8
S 3.5
RE 0.2
3D Detail Model (STP,STL)
CAD data name Download
APMT1135PDER-M0
CAD
