Insert for Rotating Tools

CCMX083508ENA EDP:100643

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade UP20M
Order Number CCMX083508EN-A
Sales unit 10
Stock
Unit of Length I

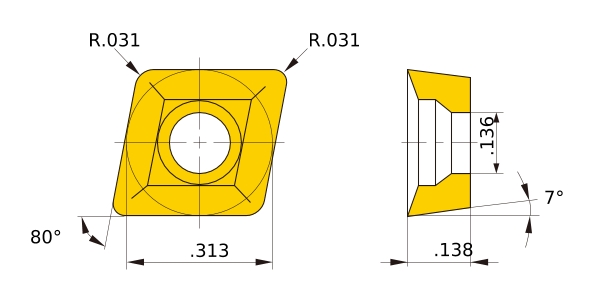

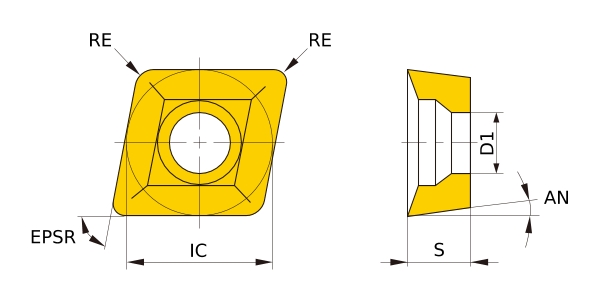

D1 .136
IC .313
EPSR 80°
AN 7°
S .138
RE .031
Classification of Grades
Coated・Carbide F7030
Non-coated・Carbide UTi20T
2D Model (DXF)
CAD data name Download
CCMX083508EN-A
CAD
