Insert for Rotating Tools

CCMX09T308EN-A EDP:175652

Product Information

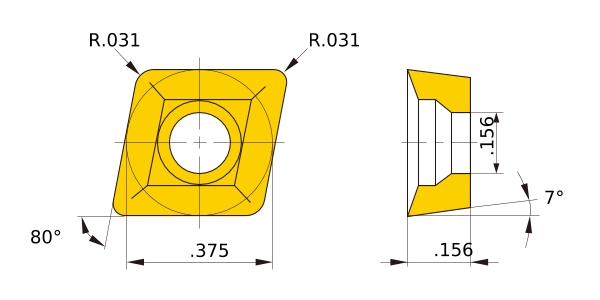

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade F7030
ANSI CCMX09T308ENA
Sales unit 10
Stock
Unit of Length M

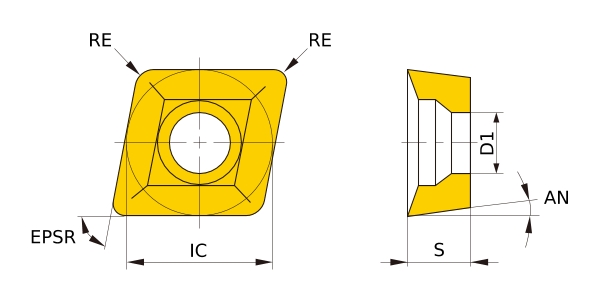

D1 3.95
IC 9.525
EPSR 80°
AN
S 3.97
RE 0.8
Classification of Grades
Coated・Carbide VP15TF
Coated・Carbide UP20M
Non-coated・Carbide UTi20T
2D Model (DXF)
CAD data name Download
CCMX09T308EN-A
CAD

3D Detail Model (STP,STL)
CAD data name Download
CCMX09T308EN-A
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
