Insert for Rotating Tools

CPMT1205ZPEN-M2 EDP:207917

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI CPMT1205ZPEN-M2
Sales unit 10
Stock

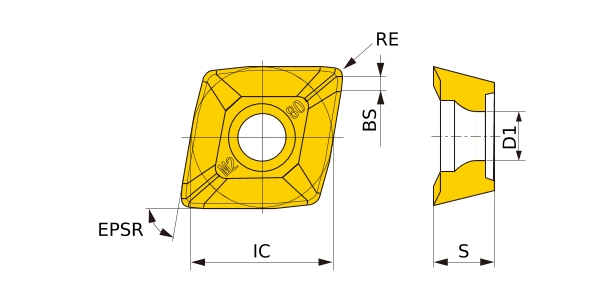

Unit of Length M
D1 4.3
IC 12.7
EPSR 80°
AN 11°
BS 1.4
S 5.56
RE 0.8
3D Detail Model (STP,STL)
CAD data name Download
CPMT1205ZPEN-M2
