Insert for Rotating Tools >XDGT1550PDFR-GL08

Insert for Rotating Tools

XDGT1550PDFR-GL08 EDP:382846

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade TF15
Order Number XDGT1550PDFR-GL08
Sales unit 10
Stock
Unit of Length I

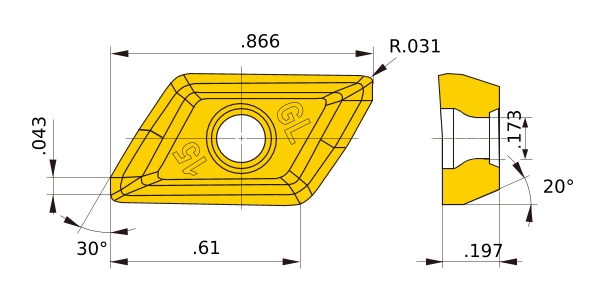

D1 .173
AN 20°
INSL .63
LE .61
L .866
BS .043
S .197
RE .031
2D Model (DXF)
CAD data name Download
XDGT1550PDFR-GL08
