Insert for Rotating Tools

SPMN433 EDP:509077

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MC5020
Order Number SPMN120412
Sales unit 10
Stock

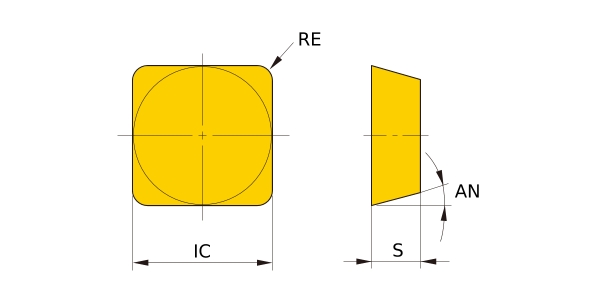

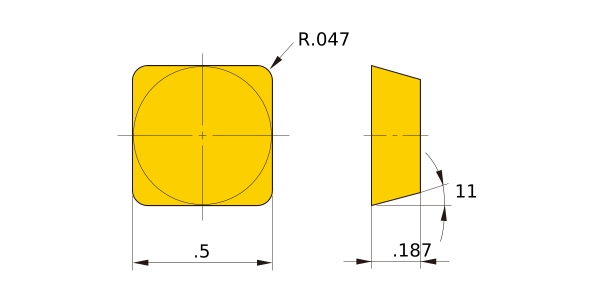

Unit of Length I
IC .5
EPSR 90°
AN 11
S .187
RE .047
Classification of Grades
Non-coated・Carbide UTi20T
3D Detail Model (STP,STL)
CAD data name Download
SPMN120412
