Insert for Rotating Tools >XDGX175008PDFR-GL

Insert for Rotating Tools

XDGX175008PDFR-GL EDP:567023

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade TF15
Order Number XDGX175008PDFR-GL
Sales unit 10
Stock
Unit of Length I

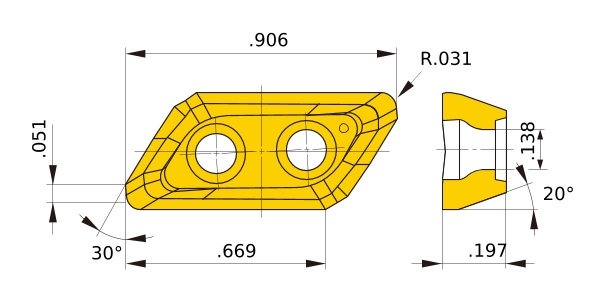

D1 .138
AN 20°
INSL .689
LE .669
L .906
BS .051
S .197
RE .031
Breaker GL
Classification of Grades
Coated・Carbide LC15TF
2D Model (DXF)
CAD data name Download
XDGX175008PDFR-GL
CAD
