Insert for Rotating Tools

STAWN1390TH EDP:541801

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number STAWN1390TH
Sales unit 1
Stock
Unit of Length I

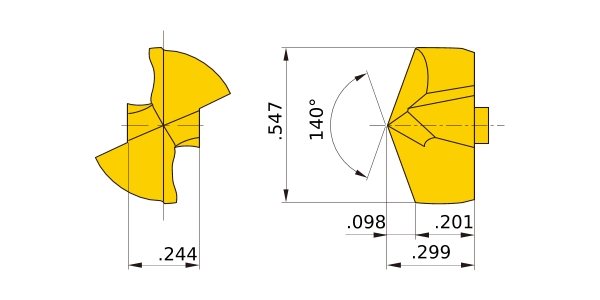

SIG 140°
LF .201
INSL .299
S .244
CDI .547
PL .098
2D Model (DXF)
CAD data name Download
STAWN1390TH
CAD
