SRM220E EDP:330270

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number SRM220E
Sales unit 10
Stock
Unit of Length I

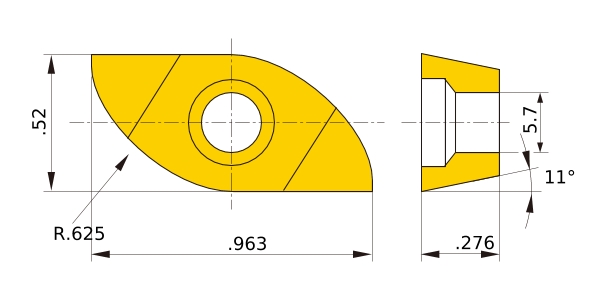

D1 5.7
AN 11°
L .963
W1 .52
S .276
RE .625
Classification of Grades
Coated・Carbide MP6120
Coated・Carbide MP9120
2D Model (DXF)
CAD data name Download
SRM220E
CAD
