Insert for Rotating Tools >XDGX227024PDFR-GL

Insert for Rotating Tools

XDGX227024PDFR-GL EDP:547487

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade TF15
Order Number XDGX227024PDFR-GL
Sales unit 10
Stock
Unit of Length I

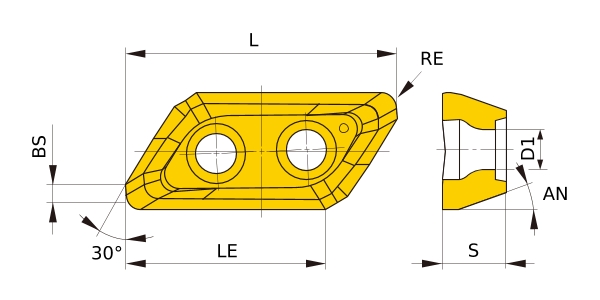

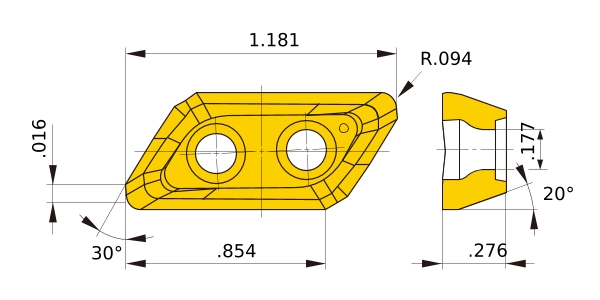

D1 .177
AN 20°
LE .854
L 1.181
BS .016
S .276
RE .094
Breaker GL
Classification of Grades
Coated・Carbide LC15TF
2D Model (DXF)
CAD data name Download
XDGX227024PDFR-GL
