Insert for Rotating Tools

TAWNH0103T EDP:359988

Product Information

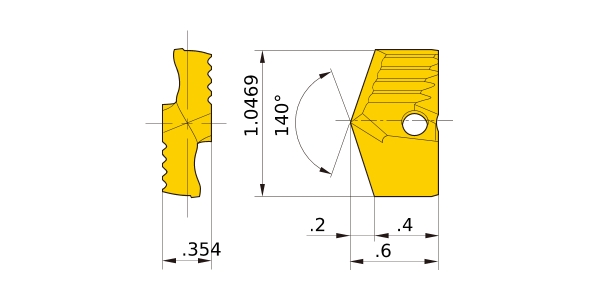

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI TAWNH0103T
Sales unit 1
Stock
Unit of Length M
SIG 140°
LF 10.16
INSL 15.24
S 8.992
CDI 26.591
PL 5.08
3D Detail Model (STP,STL)
CAD data name Download
TAWNH0103T
CAD
