Insert for Rotating Tools

TAWNH0107T EDP:360022

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade VP15TF
ANSI TAWNH0107T
Sales unit 1
Stock
Unit of Length M

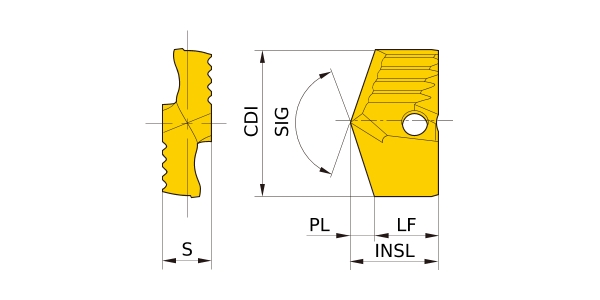

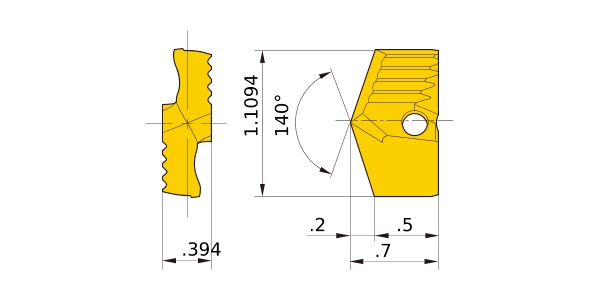

SIG 140°
LF 12.7
INSL 17.78
S 10.008
CDI 28.179
PL 5.08
3D Detail Model (STP,STL)
CAD data name Download
TAWNH0107T
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
