Insert for Rotating Tools

TAWNH0112T EDP:360073

Product Information

The actual product may differ from the displayed image.

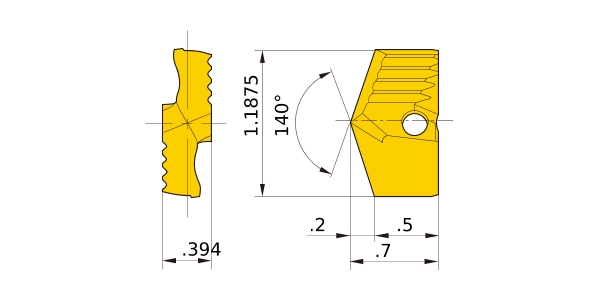

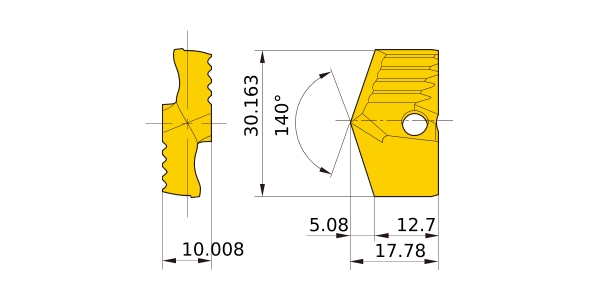

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade VP15TF
ANSI TAWNH0112T
Sales unit 1
Stock
Unit of Length M
SIG 140°
LF 12.7
INSL 17.78
S 10.008
CDI 30.163
PL 5.08
2D Model (DXF)
CAD data name Download
TAWNH0112T
CAD

3D Detail Model (STP,STL)
CAD data name Download
TAWNH0112T
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
