STAWN1630T EDP:646899

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number STAWN1630T
Sales unit 1
Stock
Unit of Length I

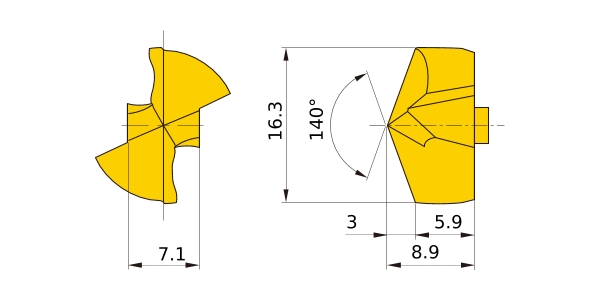

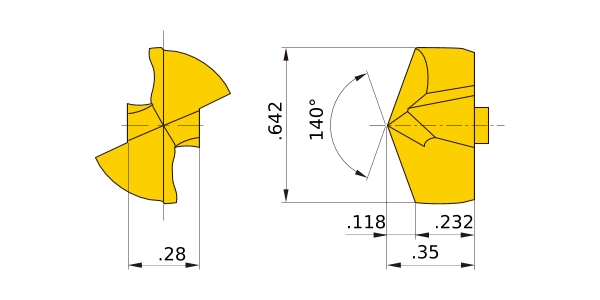

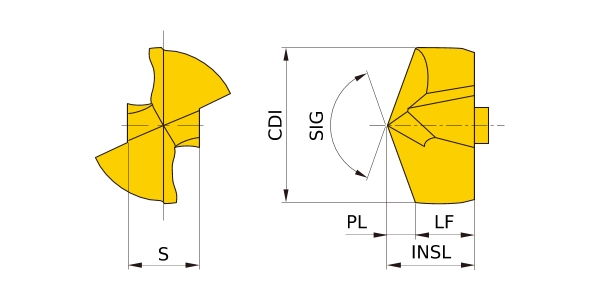

SIG 140°
LF .232
INSL .35
S .28
CDI .642
PL .118
2D Model (DXF)
CAD data name Download
STAWN1630T
CAD
