Insert for Rotating Tools

SNMU140812ANEL-M EDP:10559161

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MC5020
Order Number SNMU140812ANEL-M
Sales unit 10
Hand L
Stock

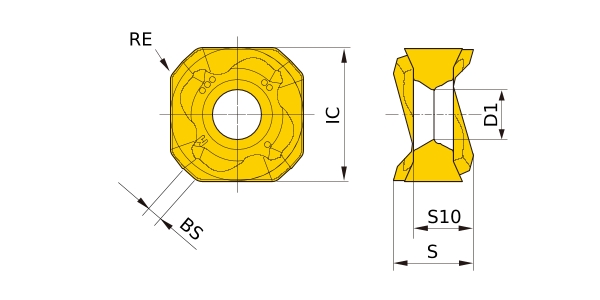

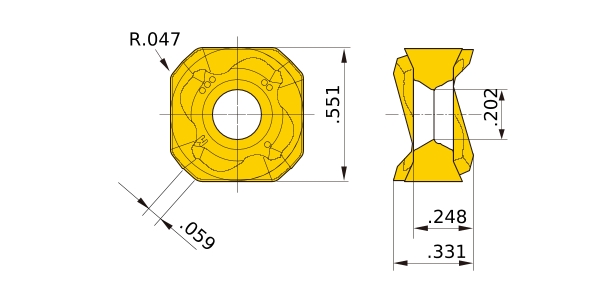

Unit of Length I
D1 .202
IC .551
BS .059
S10 .248
S .331
CF .248
RE .047
Breaker M
Classification of Grades
Coated・Carbide MP6120
Coated・Carbide MP6130
Coated・Carbide VP15TF
Non-coated・Cermet MX3030
2D Model (DXF)
CAD data name Download
SNMU140812ANEL-M
CAD
