Insert for Rotating Tools

SPMW422 EDP:23149854

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Cermet
Grade MX3030
Order Number SPMW120308
Sales unit 10
Hand N
Stock

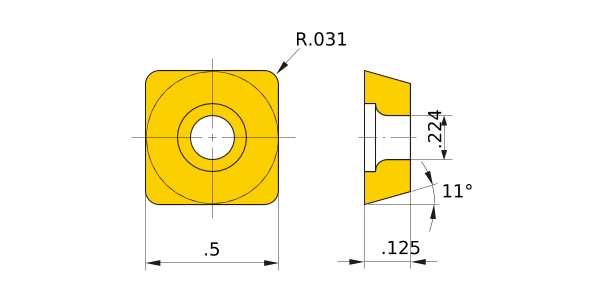

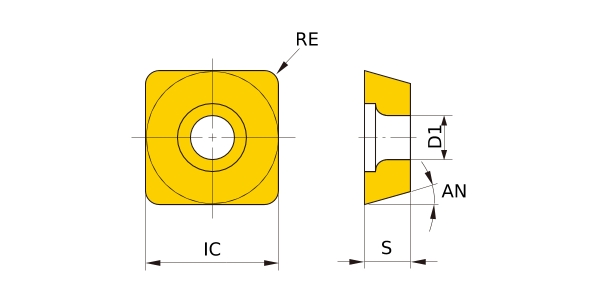

Unit of Length I
D1 .224
IC .5
EPSR 90°
AN 11°
S .125
RE .031
Classification of Grades
Coated・Carbide VP15TF
Coated・Carbide UP20M
Non-coated・Cermet NX2525
Non-coated・Cermet NX4545
Non-coated・Carbide HTi10
Non-coated・Carbide UTi20T
3D Detail Model (STP,STL)
CAD data name Download
SPMW120308
CAD
