Small Tools >M-FSCLC_P_INCH >M-FSCLPL-082.5-C
M-FSCLC_P_INCH
(Dimple Bar)

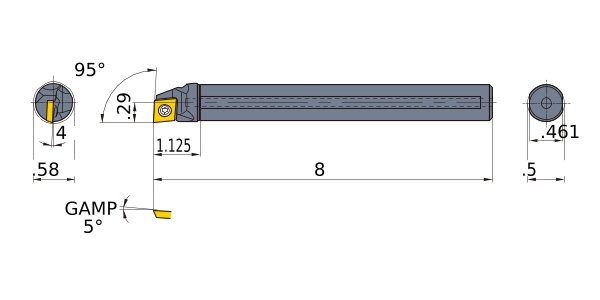

The actual product may differ from the displayed image.
For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
ANSI | JX08R-SCLPL2.5 |
Sales unit | 1 |
Hand | L |
Stock | ![]() |
Unit of Length | I |
DMIN | .58 |
DCON | .5 |
KAPR | 95° |
LF | 8 |
LDRED | 1.125 |
WF | .29 |
H | .461 |
GAMF | 4 |
RE | .016 |
Peripheral effective cutting edge count: ZEFP | 1 |
Insert Number | CP__2.51.5 |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
Recommended Cutting Condition
Turning Insert
Spare Parts
