Small Tools

GYS00_INCH
(for swiss style lathes)

SZ1R9C1

Product Information

  • Highly reliable insert clamping
  • High accuracy, long life inserts for a wide variety of machining applications

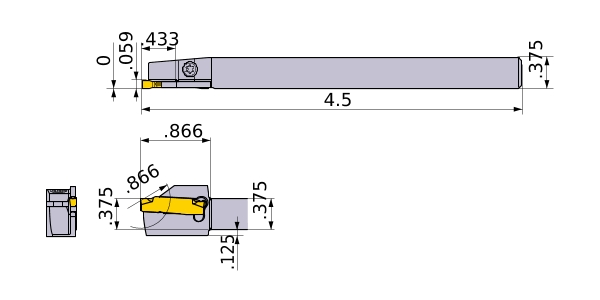

  • Dimensions shown are when the gauge insert is used.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Hand R
Stock
Unit of Length I
CUTDIA .866
B .375
L4 .62
LF 4.5
LH .866
CDX .433
H .375
HF .375
HBH .125
CW .059
Peripheral effective cutting edge count: ZEFP 1
body GYSRUS06B00-C11

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
