Small Tools

GYS00_INCH
（for swiss style lathes）

SF1R9F2

Product Information

  • Highly reliable insert clamping
  • High accuracy, long life inserts for a wide variety of machining applications

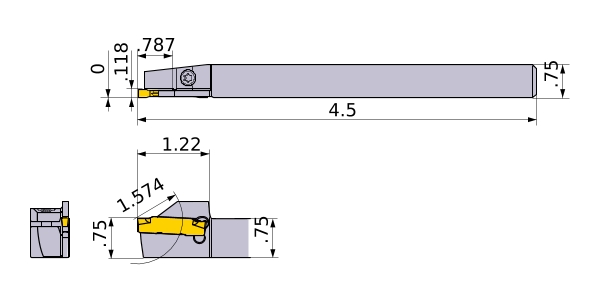

  • Dimensions shown are when the gauge insert is used.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length I
CUTDIA 1.574
B .75
L4 .885
LF 4.5
LH 1.22
CDX .787
H .75
HF .75
CW .118
Peripheral effective cutting edge count: ZEFP 1
body GYSRUS12B00-F20

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition

  • Limitation of the Maximum Groove Depth

  • Turning Insert
