Solid End Mills >VF2XLB >VF2XLBR0150N300S06
VF2XLB
(Ball nose, Long cut length, 2 flute, For hardened materials)
The actual product may differ from the displayed image.

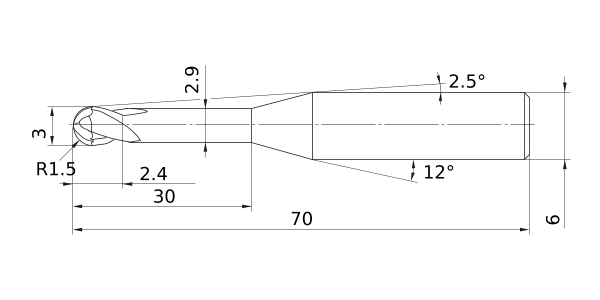

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Sales unit | 1 |
Stock | |
Unit of Length | M |
DC | 3 |
DCON | 6 |
DN | 2.9 |
B2 | 2.5° |
BHTA2 | 12° |
LF | 70 |
LU | 30 |
APMX | 2.4 |
FHA | 30° |
RE | 1.5 |
Peripheral effective cutting edge count: ZEFP | 2 |
R Tolerance - | -0.01 |
R Tolerance + | 0.01 |
Max. Cutting EdgeDiameter Tolerance | 0 |
Min. Cutting EdgeDiameter Tolerance | -0.02 |
Coated | VF |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
Recommended Cutting Condition
