Solid End Mills >MS2XLB_INCH >MS2XLBD3/32N0562

Solid End Mills

MS2XLB_INCH
（Ball nose end mill, Short cut length, 2 flute, Long neck）

MS2XLBD3/32N0562 EDP:317032

Product Information

  • 2 flute, long neck, ball nose end mill for general purpose.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock

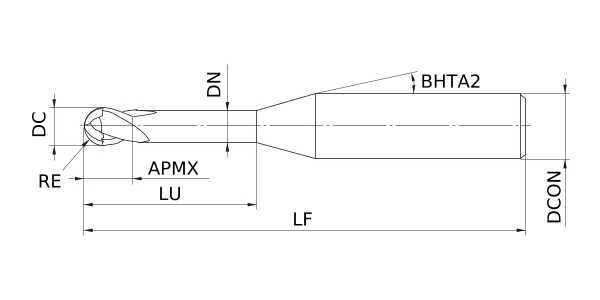

Unit of Length I

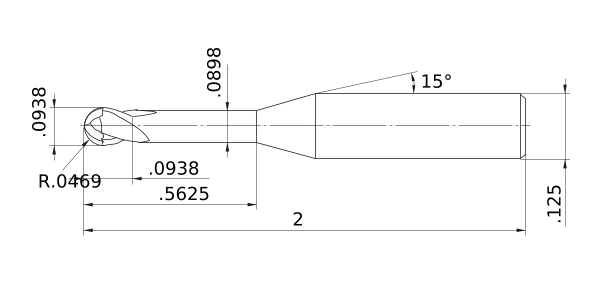

DC .0938
DCON .125
DN .0898
BHTA2 15°
LF 2
LU .5625
APMX .0938
FHA 30°
RE .0469
Peripheral effective cutting edge count: ZEFP 2
R Tolerance - -.0004
R Tolerance + .0004
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0008
Coated MS
2D Model (DXF)
CAD data name Download
MS2XLBD3-32N0562
CAD
