Solid End Mills

MS2XL_INCH
（Square, 2 flute, Long neck）

MS2XLD1/16N0500 EDP:317243

METRIC Products
Shape Series Geometry Cutter Body Type Feature Structure
MS2XL Square (Center Cut)
  • Long Neck
  • 2 flute long neck end mill.
 Solid Carbide
MS2XL6 Square (Center Cut)
  • Long Neck
  • 2 flute long neck end mill.
  • Shank type (diameter 6mm)
 Solid Carbide

Product Information

  • 2 flute, long neck, square end mill for general purpose.

The actual product may differ from the displayed image.

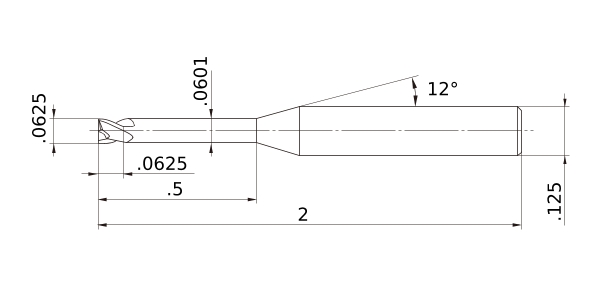

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length I
DC .0625
DCON .125
DN .0601
BHTA2 12°
LF 2
LU .5
APMX .0625
FHA 30°
Peripheral effective cutting edge count: ZEFP 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0008
Coated MS
3D Light Model (STP,STL)
CAD data name Download
MS2XLD1-16N0500
CAD
