Solid End Mills

MSMHZD_INCH
（End mill, Medium cut length, 3 flute for drilling and slotting）

MSMHZDD13/32 EDP:494451

Product Information

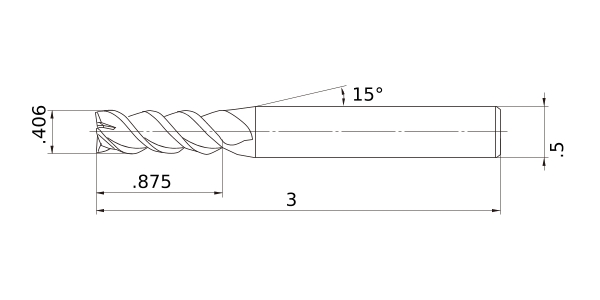

  • 3 flute end mill for both drilling and slotting.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length I
DC .406
DCON .5
BHTA2 15°
LF 3
APMX .875
FHA 45°
Peripheral effective cutting edge count: ZEFP 3
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0008
Coated MS
