Solid End Mills >VFHVRB_INCH >VFHVRBD1/2N5DR0.12

Solid End Mills

VFHVRB_INCH
（4 flute, Corner radius, Short cut length, Irregular helix flutes）

VFHVRBD1/2N5DR0.12 EDP:566194

METRIC Products
Shape Series Geometry Cutter Body Type Feature Structure
VFHVRB Radius Type
  • Medium
  • Impact Miracle corner radius end mill for high feed and efficient machining.
 Solid Carbide
VFHVRB_TAPER_NECK Radius Type
  • Taper Neck
  • Impact Miracle corner radius end mill for high feed and efficient machining.
 Solid Carbide

Product Information

  • Impact Miracle corner radius end mill for high feed and efficient machining.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock

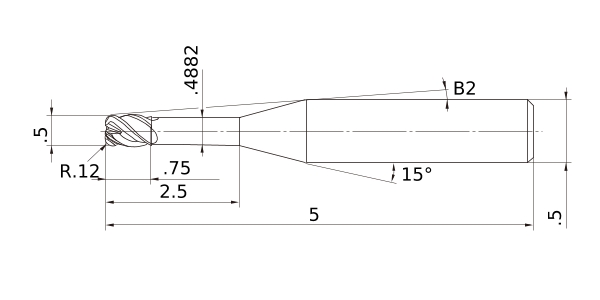

Unit of Length I
DC .5
DCON .5
DN .4882
BHTA2 15°
LF 5
LU 2.5
APMX .75
RE .12
Peripheral effective cutting edge count: ZEFP 4
R Tolerance - -.0004
R Tolerance + .0004
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0008
Coated VF
