Solid End Mills

VQMHVRB_INCH
（Corner radius end mill, Medium cut length, 4 flute, Irregular helix flutes）

VQMHVRBD3/16R010 EDP:614037

METRIC Products
Shape Series Geometry Cutter Body Type Feature Structure
VQMHVRB Radius Type
  • Medium
  • SMART MIRACLE irregular helix end mills for reduced vibration and for delivering a stable performance on difficult-to-cut materials and long overhang applications.
 Solid Carbide
VQMHVRBF Radius Type
  • Medium
  • SMART MIRACLE corner radius, irregular helix end mills for reduced vibration.
  • Delivering a stable performance on finish cutting for difficult-to-cut materials such as inconel.
 Solid Carbide

Product Information

  • SMART MIRACLE irregular helix end mills for reduced vibration and for delivering a stable performance on difficult-to-cut materials and long overhang applications.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length I

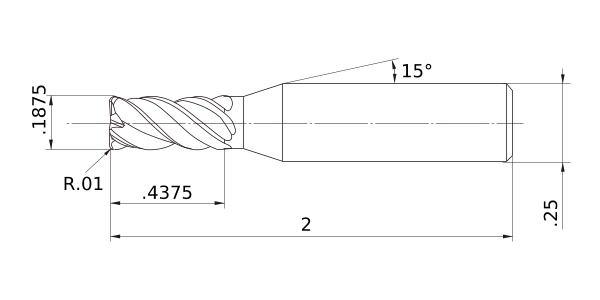

DC .1875
DCON .25
BHTA2 15°
LF 2
APMX .4375
RE .01
Peripheral effective cutting edge count: ZEFP 4
R Tolerance - -.0006
R Tolerance + .0006
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0008
Coated VQ
2D Model (DXF)
CAD data name Download
VQMHVRBD3-16R010
CAD
