（End mill, Medium cut length, For hardened materials）

VFMDD5/16 EDP:613923

METRIC Products
Shape Series Geometry Cutter Body Type Feature Structure
VFMD Square (Center Cut)
  • Medium
  • End mills with Impact Miracle coating for high hardness materials.
 Solid Carbide
VFMDRB Radius Type
  • Medium
  • 6 flute corner radius end mill with Impact Miracle coating for high hardened materials.
 Solid Carbide

Product Information

  • End mills with Impact Miracle coating for high hardness materials.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length I

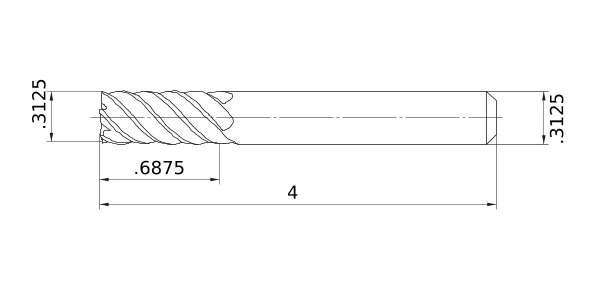

DC .3125
DCON .3125
LF 4
APMX .6875
FHA 45°
Peripheral effective cutting edge count: ZEFP 6
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0008
Coated VF
2D Model (DXF)
CAD data name Download
VFMDD5-16
CAD
