Solid End Mills

VFMD_INCH
（End mill, Medium cut length, For hardened materials）

VFMDD3/8 EDP:613931

METRIC Products
Shape Series Geometry Cutter Body Type Feature Structure
VFMD Square (Center Cut)
  • Medium
  • End mills with Impact Miracle coating for high hardness materials.
 Solid Carbide
VFMDRB Radius Type
  • Medium
  • 6 flute corner radius end mill with Impact Miracle coating for high hardened materials.
 Solid Carbide

Product Information

  • End mills with Impact Miracle coating for high hardness materials.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock

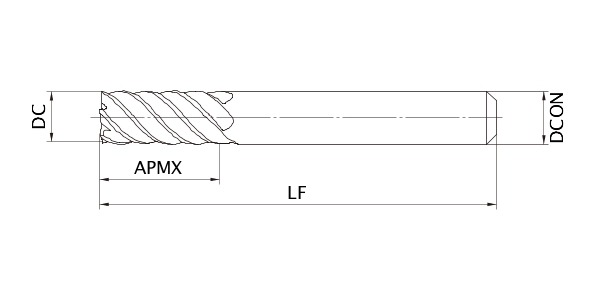

Unit of Length I

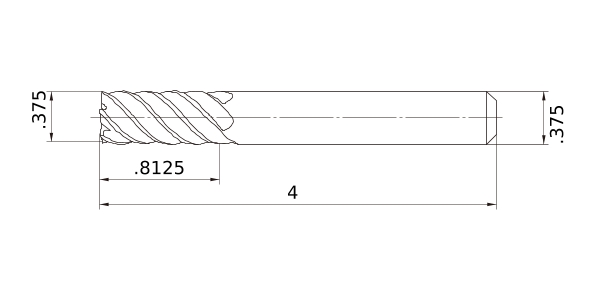

DC .375
DCON .375
LF 4
APMX .8125
FHA 45°
Peripheral effective cutting edge count: ZEFP 6
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0008
Coated VF
