Solid End Mills >VQ5MHVRB >VQ5MHVRBD5/16R015

Solid End Mills

VQ5MHVRB
（Corner radius, Medium cut length, 5 flute, Irregular helix flutes）

VQ5MHVRBD5/16R015 EDP:10624753

Product Information

  • SMART MIRACLE corner radius, irregular helix end mills for reducing vibration and for delivering stable performance on difficult-to-cut materials and long overhang applications.

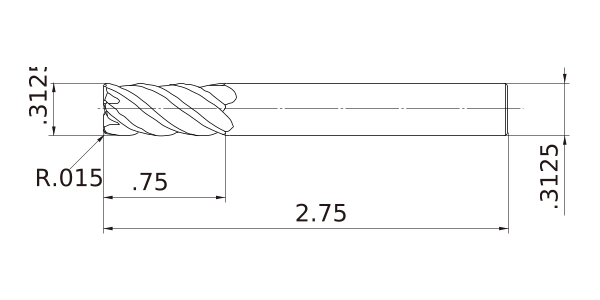

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length I
DC .3125
DCON .3125
LF 2.75
APMX .75
RE .015
Peripheral effective cutting edge count: ZEFP 5
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.012
Coated VQ

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition
