Solid End Mills >VQ4XLRB_INCH >VQ4XLRBDU031R003N5D

Solid End Mills

VQ4XLRB_INCH
（Corner radius, Short cut length, 4 flute, Long neck）

VQ4XLRBDU031R003N5D EDP:23978539

Product Information

  • SMART MIRACLE coating enhances efficiency due to an improved chip disposal.
  • Multi-cutter at a small diameter of Ø.1250 inch are realized.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock

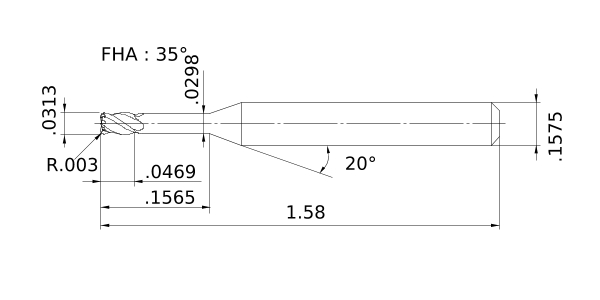

Unit of Length I
DC .0313
DCONMS .1575
DN .0298
BHTA2 20°
LF 1.58
LU .1565
APMX .0469
FHA 35°
RE .003
Peripheral effective cutting edge count: ZEFP 4
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0008
Coated VQ
2D Model (DXF)
CAD data name Download
VQ4XLRBDU031R003N5D
